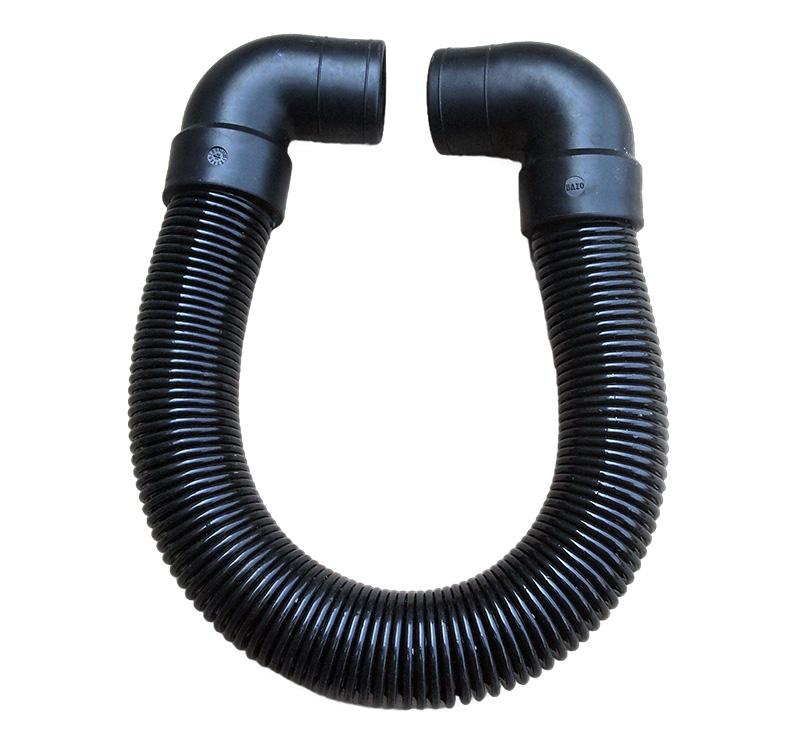

Structure: Steel wire reinforced, Tape（Ribs(conventional) or smooth surface）
Size: ID10~50mm
Material: Modified materials
Characteristic: Extensible, good flexibility, good durability, good cold and heat resistance, steel wire support, good acid and alkali resistance.
Application: Scrubber machine, Cleaning equipment, Wire and Cable Protection, Industrial dust collection and ventilation, Solid particulate material transportation, Vacuum cleaning.
Color: Black (Conventional), grey (Conventional), can be customized according to customer requirements of other colors.
Cuffs: Over molding (100% leak test)
Length: 0~3m (Conventional), (More than 15m can be customized)
内径 ID | 外径 OD | 重量 Weight | 皮厚 Tape thickness | 弯曲半径 Bending radius |
mm | mm | g/m | mm | mm |
25 | 30.0 | 570 | 0.5~0.7 | 20 |
32 | 37.0 | 700 | 0.5~0.7 | 26 |
38 | 43.0 | 840 | 0.5~0.7 | 32 |
50 | 57．0 | 1400 | 0.5~0.7 | 48 |
Above is the conventional size, other sizes can be customized according to customer needs. | ||||
