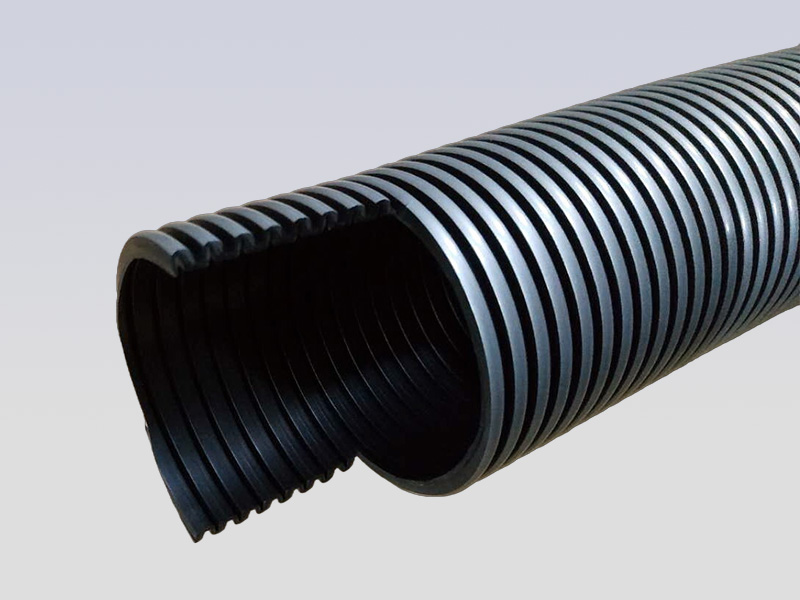

Structure: 100% plastic, Spiral forming
Size: ID25~60mm
Characteristic: Good wear resistant, excellent bending resistance, good cold resistance, acid and alkali resistance.
Application: Household vacuum cleaner, industrial vacuum cleaner, cleaning equipment, water absorption and sewage discharge, wire and cable protection.
Color: Black (Conventional), grey (Conventional), can be customized according to customer requirements of other colors.
Cuffs: Over molding (100% leak test)
Length: 0~15m (Conventional), (More than 15m can be customized)
Customized: Different materials, sizes and lengths can be customized.
内径 ID | 外径 OD | 重量 Weight | 壁厚 Thickness | 弯曲半径 Bending radius |
mm | Mm | g/m | mm | mm |
20 | 26 | 100 | 3.0~3.5 | 30 |
25 | 32 | 130 | 3.5~4.0 | 35 |
32 | 39 | 170 | 3.5~4.0 | 48 |
38 | 46 | 250 | 3.5~4.5 | 57 |
50 | 58 | 340 | 3.5~4.8 | 75 |
Above is the conventional size, other sizes can be customized according to customer needs. | ||||
